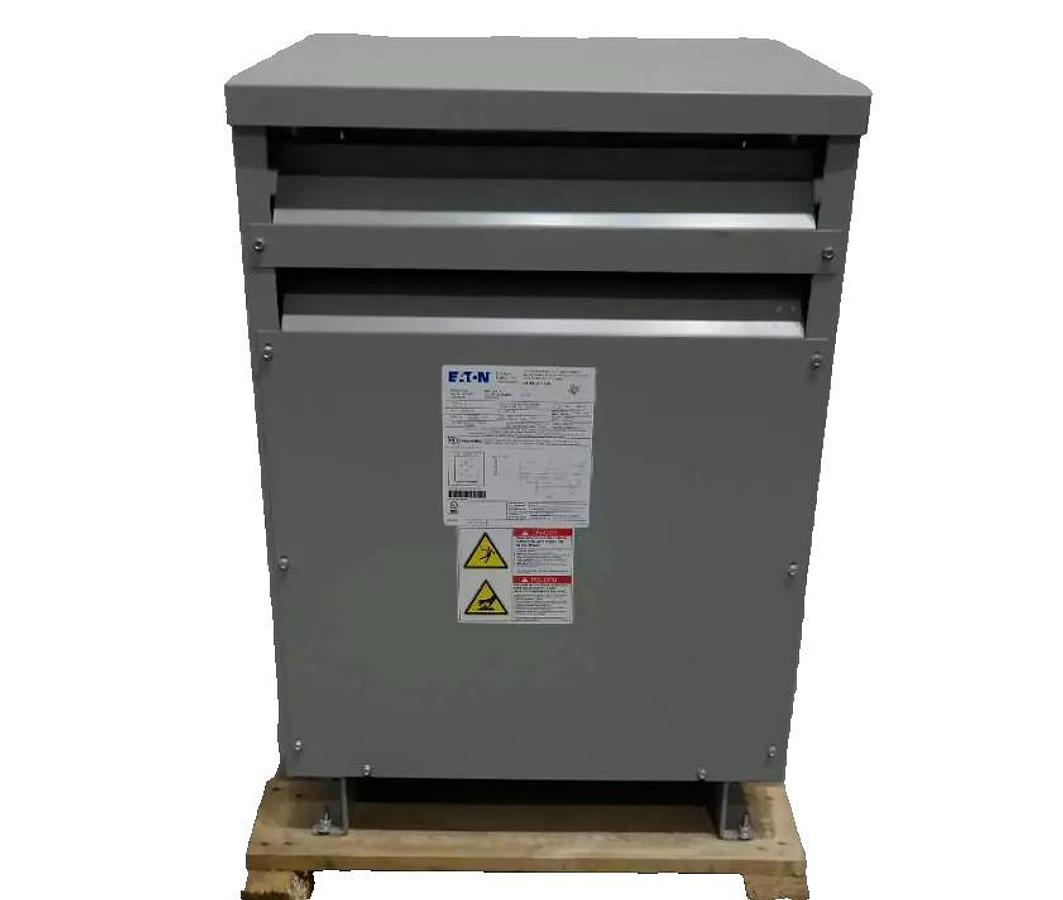

Eaton V48M28T4516 Dry DT-3 Transformer 45 kVA 45kva 408-208/120v 3ph NEW
Eaton V48M28T4516 Dry DT-3 Transformer 45 kVA 45kva 408-208/120v 3ph NEW
$2,900 (USD)
or
Call 803.684.2410
Description

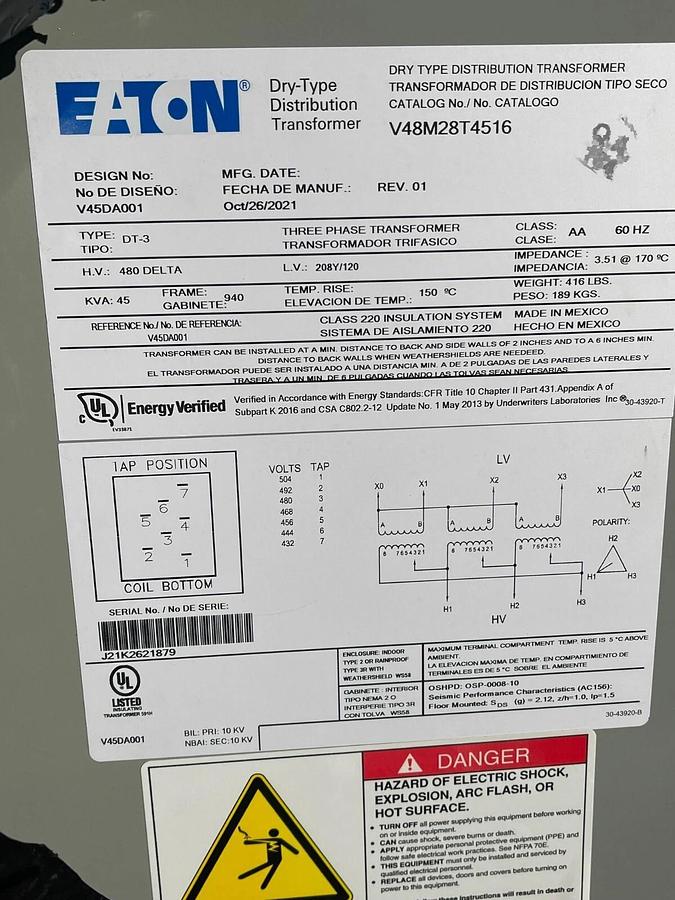

Eaton Dry Type Distribution Transformer
V48M28T4516
Type: DT-3
45 kVA
3-Phase
H.V. 480 Delta
L.V. 208Y/120 V
Class AA
60HZ
Impedance 3.51 @ 170*c
Class 220 insulation
Frame 940

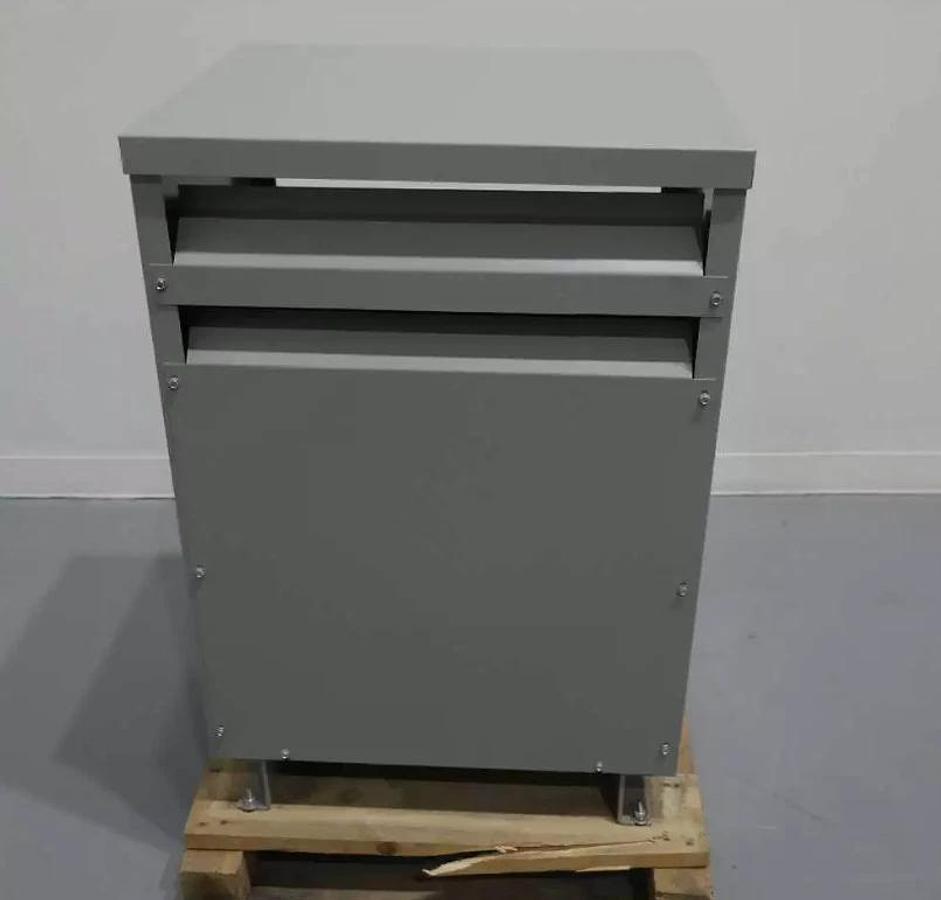

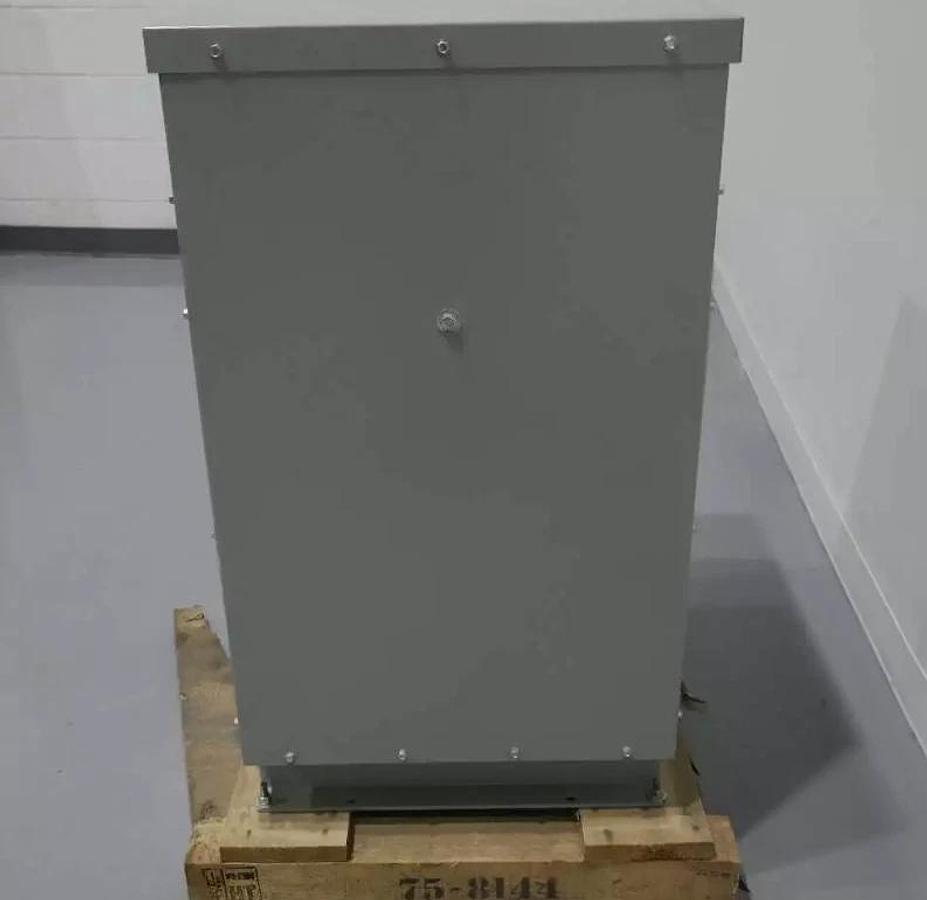

Condition New on pallet in stock ready to ship. Some light cosmetic scuffs and scratches due to storage.
FREIGHT: Flat Rate freight cost is based on shipping to a commercial location on East Coast. Please message for freight quote if different circumstances.
416lb w/out pallet | 11625
Specifications
| Manufacturer | Eaton |
| Model | V48M28T4516 |
| Condition | New |
| Stock Number | 296947266139 |
| Power Rating | 45 kVA |
| Mounting Style | Stand Alone |
| Minimum Operating Frequency | 60 Hz |
| Current Conversion | AC to AC |
| Number of Phases | 3 |
| Primary Current Rating | 480 Delta |
| Conversion Function | Step-down |
| Primary Voltage Rating (AC) | 480V |
| Type | Power Transformer |
| Primary Impedance | 3.51 @ 170*C |
| Secondary Voltage Rating (AC) | 208Y/120 V |
| Maximum Operating Frequency | 60 Hz |
| Secondary Current Rating | 208Y/120 |
