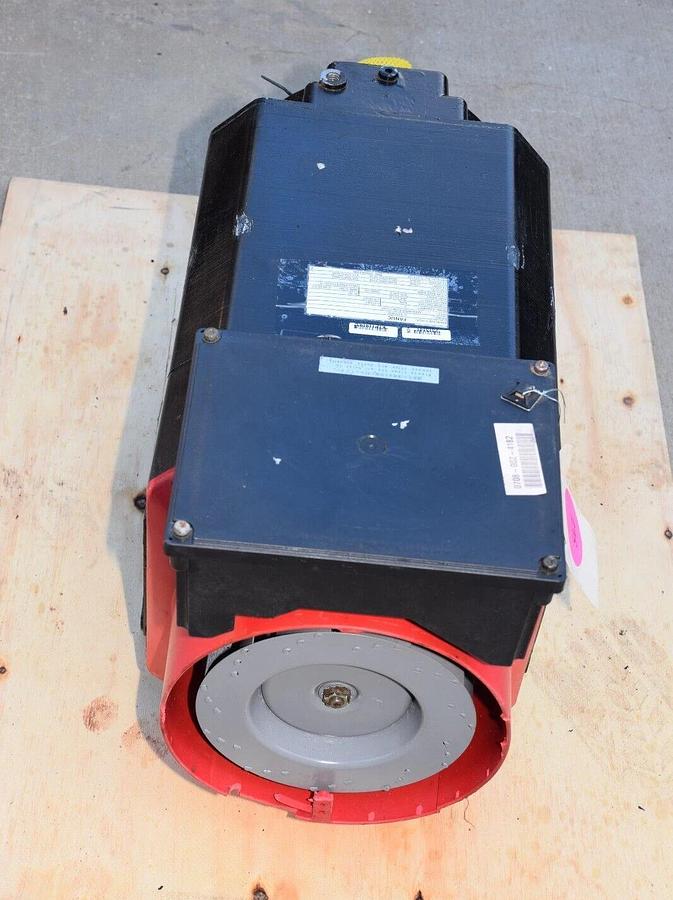

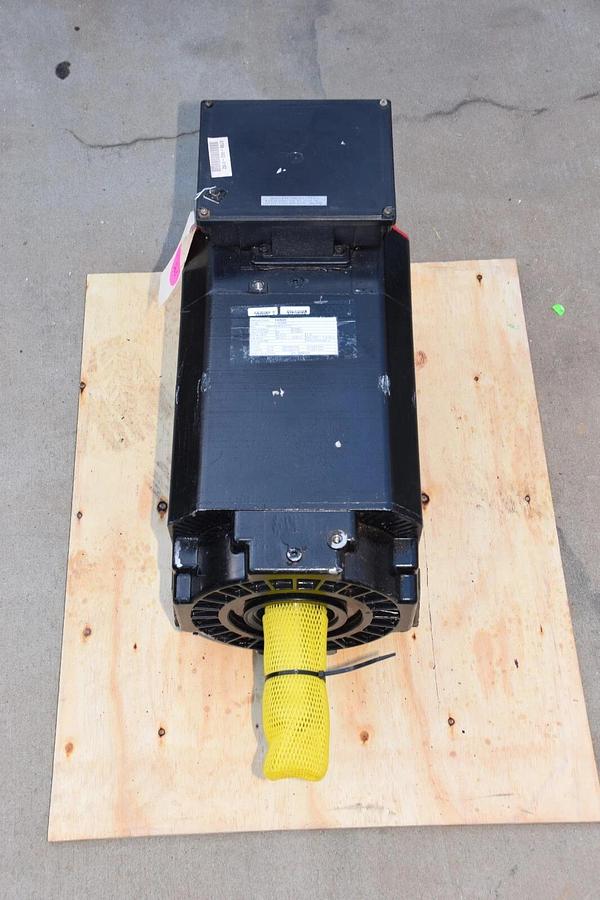

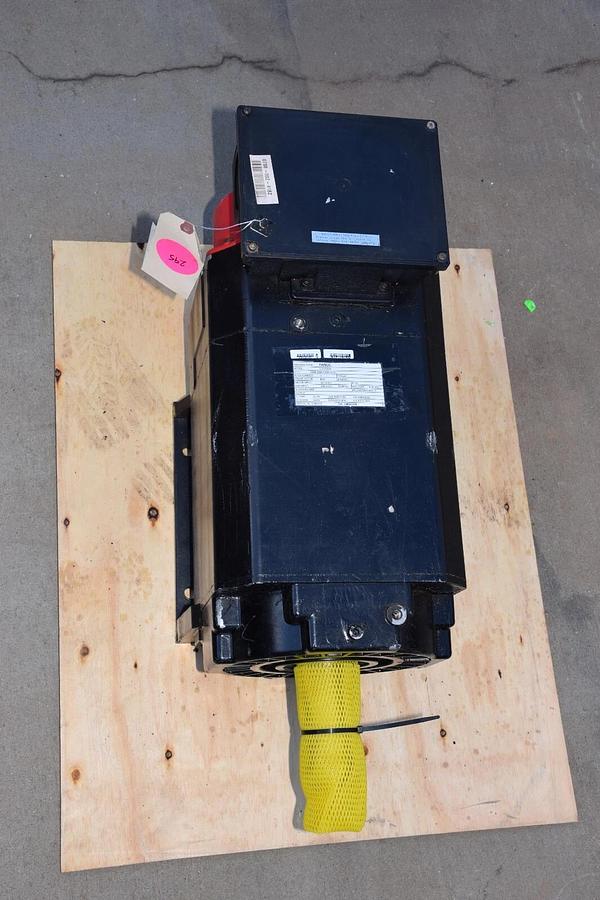

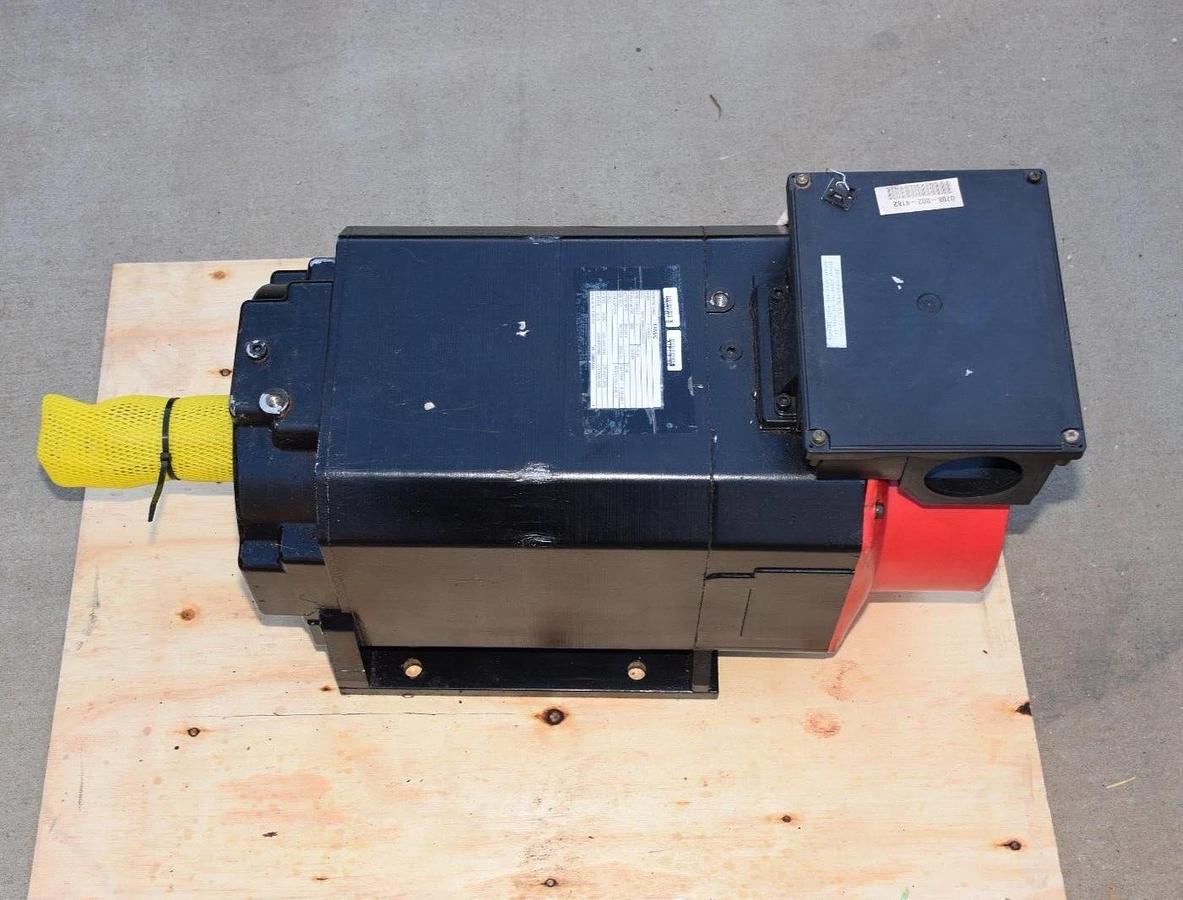

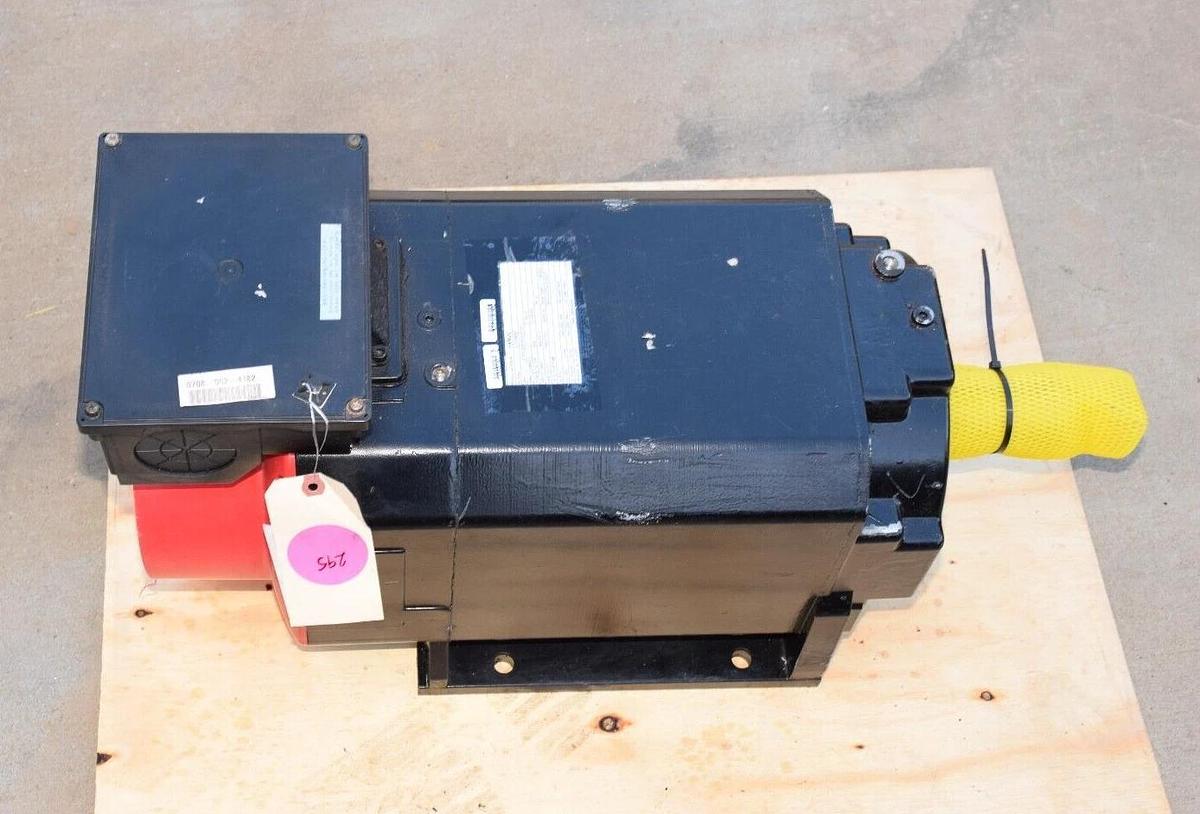

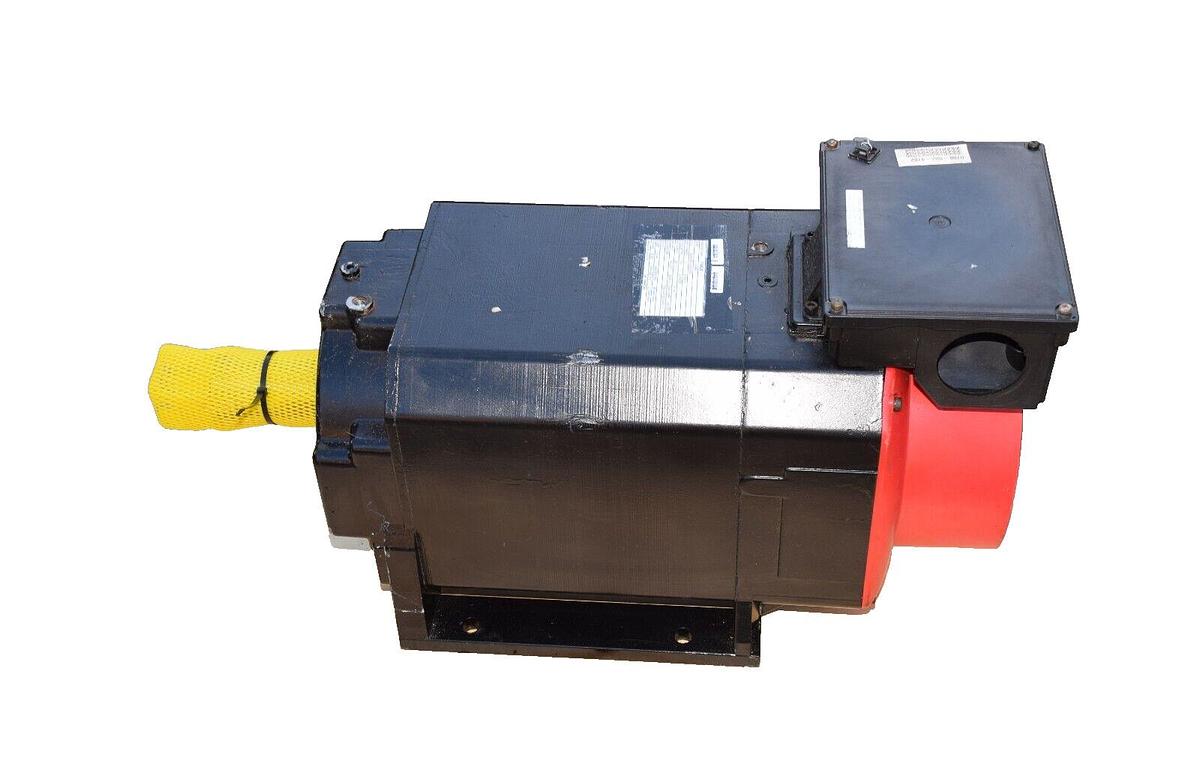

FANUC Spindle Motor 22/6000 A06B-0859-B200#3000 4p 3ph 200-230v *Refurb*

FANUC Spindle Motor 22/6000 A06B-0859-B200#3000 4p 3ph 200-230v *Refurb*
$5,250 (USD)
or
Call 803.684.2410
Description

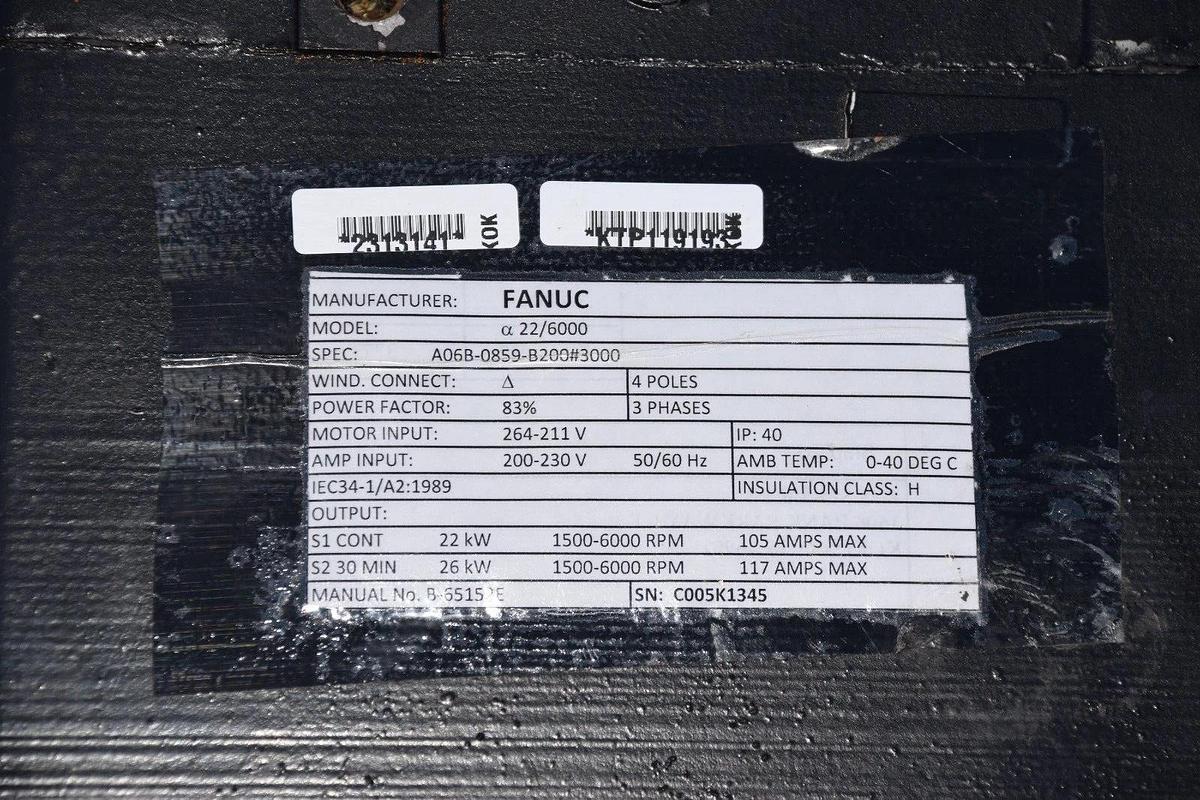

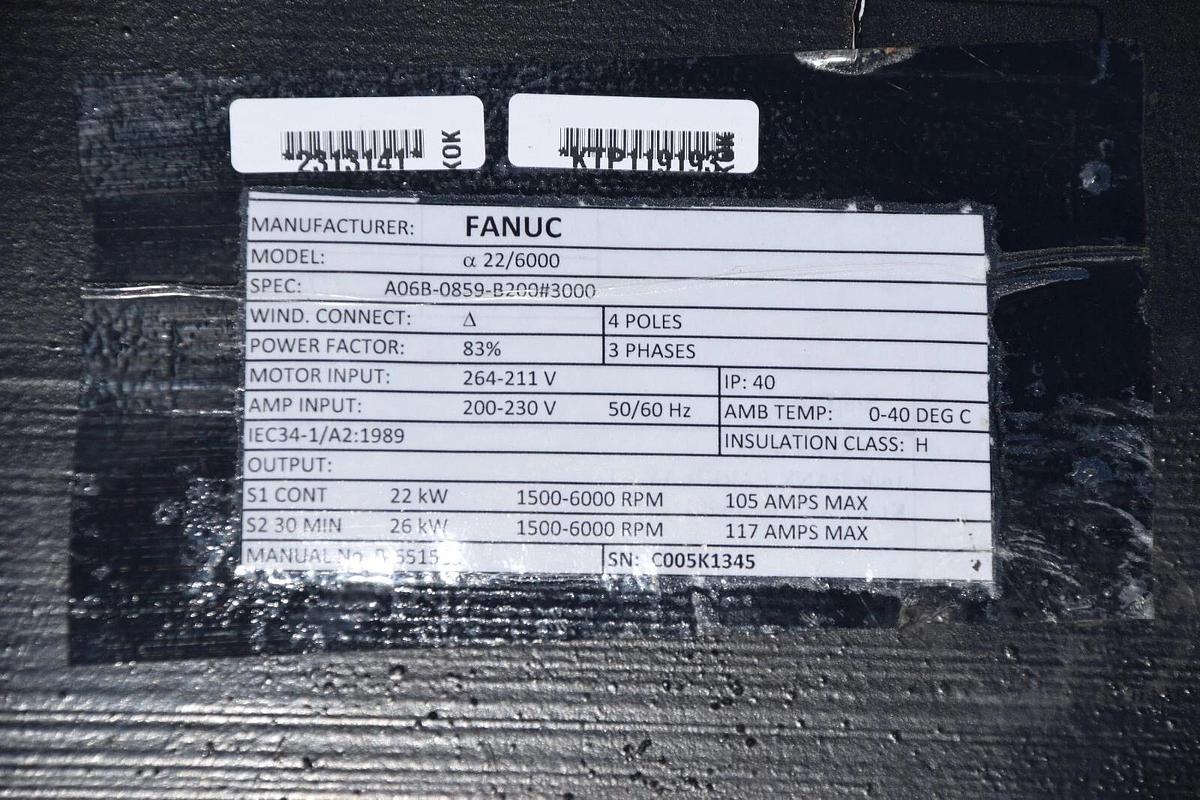

FANUC Spindle Motor
22/6000
A06B-0859-B200#3000
4 poles
3ph
Motor Input: 264-211v
Amp Input: 200-230v, 50/60hz
IP: 40
Ins Clas: H
S1 Cont: 22kW, 1500-6000rpm, 105a max
S2 30min: 26kW, 1500-6000rpm, 117a max
Condition: Refurbed, unused since. Missing fan shroud
Freight cost: Flat rate freight cost shown is approximant amount to a business address with a way to unload the pallet on the East coast, final cost will be sent after quote request. Please request a quote if you're out West, not a business or need a liftgate. Thank you. Fireside Surplus, Inc.
Free local pickup at Fireside Surplus in York S.C.
(1) ka 335# 31124
Specifications
| Manufacturer | FANUC |
| Model | A06B-0859-B200#3000 |
| Condition | Refurbished |
| Stock Number | 305445407485 |
| Country of Origin | United States |
| Actual Rated Input Voltage | 264-211v |
| Type | Spindle Motor |
| No-Load RPM | 1500-6000rpm |
| Nominal Rated Input Voltage | 200-230v |
| Insulation Class | H |
